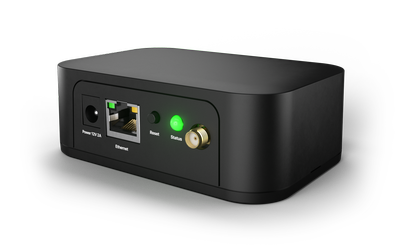

Cloud Access Controller
General features
Power electromagnetic/electromechanical lock
Connect to the Interner via Wi-Fi or Ethernet cabel
Get access and tune your cloud control panel
Track real-time activity, export and get alert on any of your devices.
Technical specifications
- Wi-Fi 2,4GHz
- Ethernet RJ-45
- SMA antenna port
- Power 12V DC
- Power Outputs for Electric Locks
- Cloud-Configurable Access
- Over-the-Air Updates
- Support of any existing exit buttons, Wiegand (26/32) readers.
Connection Options
The controller connects to an electric lock and the cloud server. So it opens doors, using reader or exit buttons and log all the events in real-time. The controller connects to the cloud-based server using a built-in Wi-Fi module, which avoids the need to setup a local server machine. If the keypass.cloud controller is outside the range of the Wi-Fi router, Internet access can be obtained by using an Ethernet cable. In case of the internet troubles the controller keeps the data locally sending all the logs back to the cloud server after the connection is stable again.
Wi-Fi
Exit button
Door sensor
Internet router/switch
Fire alarm
DC power 12V
Controller
Reader #1
Electric lock 12V
Reader #2
Wiegand 26/34
Wiegand 26/34
Integration with
the Cloud panel
the Cloud panel
Once you get the controller sign up in the Keypass Cloud control panel. First of all, add your controller by entering the device ID which is printed on the PCB and give it a referencing name, e.g. “Entrance door”. After that, add your employees and the payment method. It is as easy as it sounds
Cloud panel
FAQ (Frequently Asked Questions)
1. Cloud and internet are not stable. If the Internet stops working the doors won’t open?
That was the first issue we have solved. The controller is a small computer as itself and itstores settings and log events locally.
As soon as the Internet access is stable again, the controller synchronises all the settings and logs with the cloud.
As soon as the Internet access is stable again, the controller synchronises all the settings and logs with the cloud.
2. Can I connect other manufacturers readers and exit buttons to your controller?
Yes. The controller supports the connection of Wiegand (26/34) and 1-Wire solutions with various configurations (RFID, Bluetooth, NFC, digital input panels, fingerprints etc.) as well as all the existing exit buttons.
3. What if I want to sell your solution using my own brand, is it possible?
Yes, we provide a white label to both solutions – the controller and the cloud control panel. You just need to contact us by [email protected]
